SPECIFICATIONS

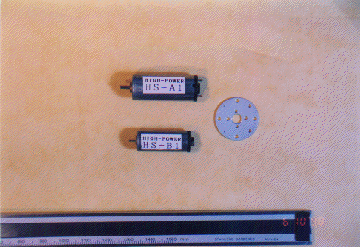

HS-A1 motor
Length:36.6m/m(1.44")
HS-B1 motor
Length:30.3m/m(1.19")


Specifications of Power Unit "HS-A1"...."HS-B1"

OPERATING VOLTAGE2.4V3.6V
MOTOR TYPEHS-A1same
No-Load Current0.12A0.14A
No-load Rotation* 12,500rpm* 18,700rpm
Stalling Torque32 gcm.48 gcm.
Stalling Current2 Asame
Weight12.8 gr. (0.45 oz)same
Outer Diameter12 mm (0.47 ")same
Shaft Diameter1.5mm (0.06 ")same
Output1.5 W 2.2 W
Propeller recommended100x44mm (3.9 " x 1.7 ")same
Max. Propulsive force24 gr. (0.84 oz)32gr. (1.12 oz)
Flying Weight72 gr. (2.53 oz)96 gr. (3.38 oz)


Parts contained in Power Unit "HS-A1"

PartsQ'tyDetails
Motor1pc.HS-A1
Ni-cad cell1pc.SANYO 3.6V. 50mAh 3cells
Propeller2pc.P10075 100x44m/m(39.4"x17.3") , Inner diameter:1.5m/m(0.59"), Material:ABS
Charging terminal1pc.---
Slide Switch1pc.---
Quick Charger1pc.6pcs. x U2 cell battery required
Screws2pcs.M1.6



OPERATING VOLTAGE2.4V3.6V
MOTOR TYPEHS-B1same
No-Load Current0.08A0.09A
No-load Rotation* 16,500rpm* 24,500rpm
Stalling Torque18 gcm.27 gcm.
Stalling Current1.9Asame
Weight 8.0 gr. (0.28 oz)same
Outer Diameter10 mm (0.39 ")same
Shaft Diameter1.0mm (0.039 ")same
Output1.0 W 1.5 W
Propeller recommended80 X 44mm (3.14" x 1.73")same
Max. Propulsive force17 gr. (0.59 oz)30 gr. (1.05 oz)
Flying Weight50 gr. (1.76 oz)90 gr. (3.17 oz)


Parts contained in Power Unit "HS-B1"

PartsQ'tyDetails
Motor1pc.HS-B1
Ni-cad cell1pc.SANYO 3.6V. 50mAh 3cells
Propeller2pc.P 8044 80x44m/m(31.49" x 17.3"), Inner diameter:1.0m/m(0.39"), Material:ABS
Charging terminal1pc.---
Slide Switch1pc.---
Quick Charger1pc.6pcs. x U2 cell battery required
Screws2pcs.M1.4
