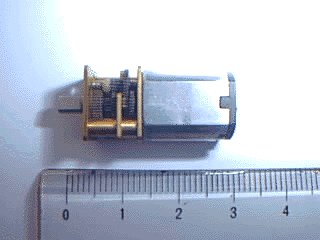

| ITEM /unit | HS-GM2A SAKAE 42A | HS-GM2B SAKAE 42B | HS-GM2C SAKAE 42C | HS-GM2D SAKAE 42D | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NO LOAD ROTATION/rpm | 240 | 130 | 90 | 60 | ||||||||
| NO LOAD CURRENT/mA | 110 MAX | 110 MAX | 110 MAX | 110 MAX | ||||||||
| VARIABLE RANGE/rpm | 60-190 | 45-150 | 30-100 | 15-50 | ||||||||
| ROTATION for 200gcm/rpm | 180 | 110 | 83 | 60 | ||||||||
| LOAD CURRENT for 200gcm/mA | 200 | 130 | 120 | 90 | ||||||||
| STARTING TORQUE /gcm | 800 | 1400 | 2000 | 3300 | ||||||||
| STARTING CURRENT /mA | 600 MAX | 600 MAX | 600 MAX | 600 MAX | ||||||||
| AVAILABLE RANGE OF VOLTAGE/DCV | 1.0-6.0 | 1.0-6.0 | 1.0-6.0 | 1.0-6.0 | ||||||||
| REDUCTION RATIO | 1/80 | 1/130 | 1/200 | 1/300 | ||||||||
| NUMBER OF REDUCTION STEP | 4 | 5 | 5 | 5 | ||||||||
| DIRECTION OF ROTATION | CW | CCW | CCW | CCW | ||||||||
| UNIT WEIGHT /gr. | 8.7 +/- 1 | 8.7 +/- 1 | 8.7 +/- 1 | 8.7 +/- 1 | ||||||||
| BACKLASH OF OUTPUT PIVOT /mm | 0.2-0.35 | 0.2-0.35 | 0.2-0.35 | 0.2-0.35 | ||||||||
| SWING OF OUTPUT PIVOT /mm | 0.04 | 0.04 | 0.04 | 0.04 | ||||||||
| MOUNTING POSITION | MULTI DIRECTION AVAILABLE | same as left | same as left | same as left | ||||||||
| DRIVING NOISE / dB | 55 dB-A MAX (based on DC5V,no load,horizonal position) | same as left | same as left | same as left | ||||||||
| RANGE OF TEMPERATURE IN USE/C degree | 0-50 | 0-50 | 0-50 | 0-50 | ||||||||
| RANGE OF TEMPERATUR IN STORAGE | -30 ~ 70 | -30 ~ 70 | -30 ~ 70 | -30 ~ 70 | ||||||||
